MEDIUM & HEAVY DUTY TRUCK STEERING
GEARS
Please Call for Pricing
1-800-650-4145
TRW / ROSS POWER STEERING GEARS

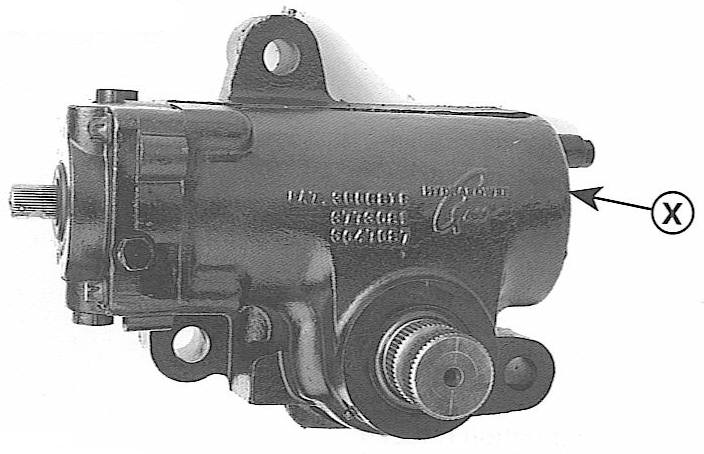

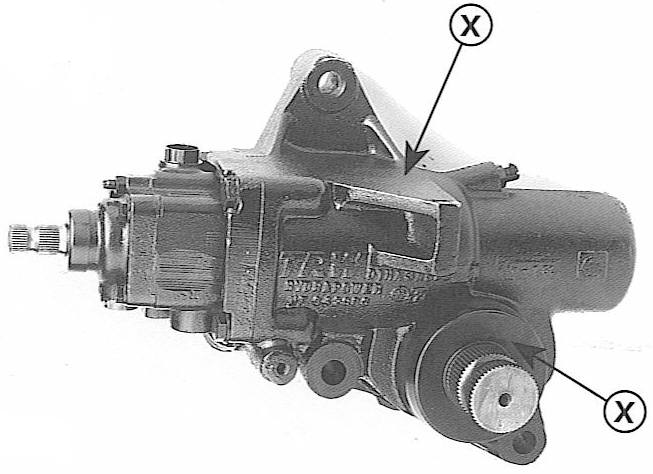

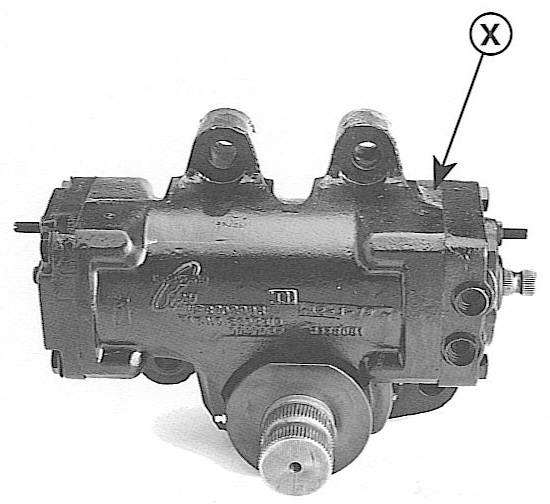

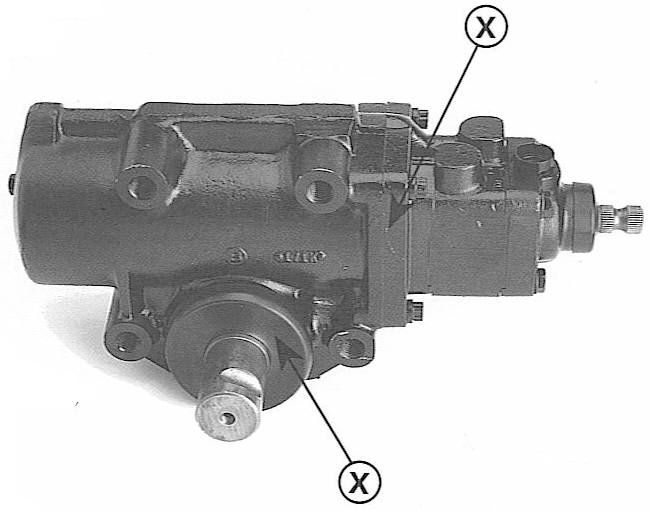

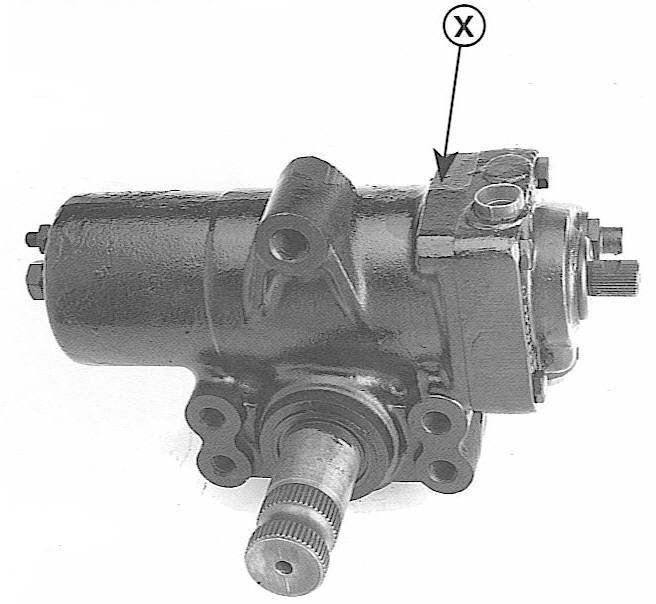

These gears are identified by the stamped number located in
the areas indicated in the illustrations below.
The raised casting number is used to identify the series only. Do not use the
raised casting number to order.
If you know the original equipment part number, refer to the
original equipment
interchange.
SAGINAW STEERING GEARS
710 DUAL PISTON
These gears are identified by casting
number & sector shaft type.
|
CAST # |
SECTOR SHAFT TYPE |
PART # |
|
26002502 |
|
710M-TK |
|
7813161 |
|
710 |
|
7813161 METRIC |
FULL SPLINE |
710MFS |
|
7813161 METRIC |
SEMI-SPLINED (STAMPED D9) |
710MD9 |
|
7813161 METRIC |
SEMI-SPLINED |
710M |
|
7830389 |
|
710IHC |
Full Spline Semi-Splined
SAGINAW POWER ASSIST
These gears are identified by housing cast
number, sector shaft type, and valve cast number.
|
HOUSING CAST # |
SECTOR SHAFT TYPE |
VALVE CAST # |
PART # |
|
5687966 |
5687966 |
||
|
5690653 |
SEMI-SPLINED |
5690653 |
|
|
5690653 |
TAPERED |
5690653A |
|
|
5696067 |
SEMI-SPLINED |
5687511 |
5696067LV |
|
5696067 |
SEMI-SPLINED |
5697919 |
5696067HV |
|
5696067 |
FULL SPLINE |
5696067FS |
|
|
7802018 |
7802018 |
||
|
7832003 |
SEMI-SPLINED |
7832003 |
|
|
7832003 |
TAPERED |
7832003A |
|
|
7832331 |
7832331 |
||
|
7832333 |
SEMI-SPLINED |
7832333 |
|
|
7832333 |
TAPERED |
7832333A |
Full Spline Semi-Splined Tapered
SHEPPARD STEERING GEARS

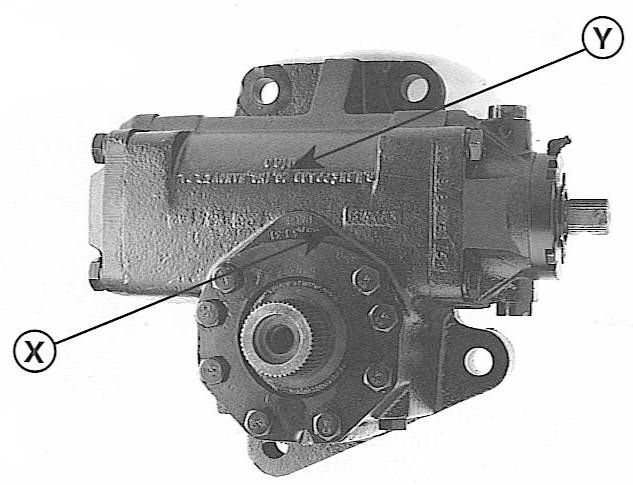

These gears are identified by the
raised casting number (i.e. 292, 392) in combination with the stamped
alphanumeric code (i.e. SBX6, SGS4) located in the areas indicated in the
illustrations below, If you know the original equipment part
number, refer to the original equipment interchange.
